On-Prem Setup

Deploy the AI Evals platform on your own Kubernetes cluster for full control over data residency, compliance, and network isolation.

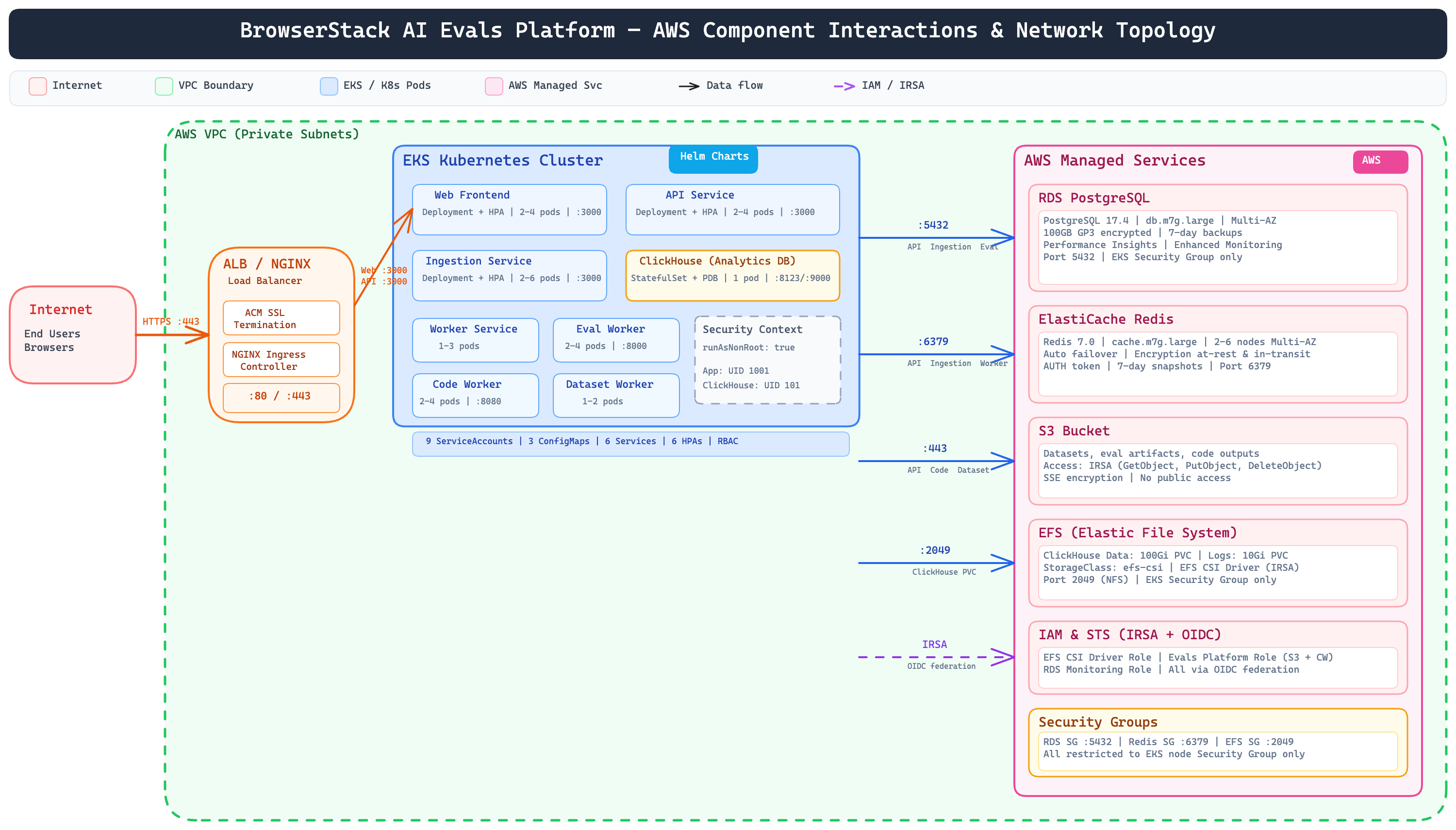

Architecture

The AI Evals platform runs entirely within your AWS account inside a private VPC. There are no external dependencies or callbacks to BrowserStack infrastructure — all data stays within your network boundary.

How Traffic Flows

End users access the platform over HTTPS through an ALB (Application Load Balancer) with SSL termination via AWS ACM. An NGINX Ingress Controller routes requests to the appropriate service inside the EKS cluster.

Your application SDKs send traces to the Ingestion Service, which writes observability data to ClickHouse (analytics) and PostgreSQL (metadata). The API Service powers all dashboard operations — managing prompts, experiments, datasets, and evaluation results.

Application Services

The platform consists of these services, all running as Kubernetes deployments with horizontal pod autoscaling:

• Web Frontend — Dashboard UI for viewing traces, managing experiments, and configuring evaluations
• API Service — Backend API serving the dashboard and handling platform operations
• Ingestion Service — Receives and processes traces and observations from your SDKs
• Worker Service — Processes background jobs (prompt versioning, session management)
• Eval Worker — Python-based evaluation engine that runs scoring and LLM-as-judge evaluations
• Code Worker — Executes user-defined custom code evaluators in a sandboxed environment
• Dataset Worker — Handles dataset imports, exports, and processing

Data Layer

All persistent data lives in AWS-managed services provisioned within your VPC:

• RDS PostgreSQL — Primary relational database storing projects, prompts, experiments, and evaluation configurations. Multi-AZ with encrypted storage and automated backups.
• ElastiCache Redis — Job queue broker and cache layer. Multi-AZ with automatic failover, encrypted at rest and in transit.
• ClickHouse — Analytics database for traces, observations, and scores. Runs as a StatefulSet inside the cluster with EFS-backed persistent storage.
• S3 — Object storage for datasets, evaluation artifacts, and code outputs. SSE encryption, no public access.

Security Boundaries

• All services run as non-root containers
• Database and cache access is restricted to the EKS node security group only
• All storage is encrypted at rest; Redis is also encrypted in transit
• AWS service access uses IRSA (IAM Roles for Service Accounts) via OIDC — no static credentials in the cluster

Deployment Package

BrowserStack provides a deployment package (aievals-onprem-<version>.zip) containing everything needed to deploy the platform. The package includes:

• Helm charts — Umbrella chart that deploys all application services, ClickHouse, and ingress configuration
• CloudFormation templates — Provisions RDS PostgreSQL, ElastiCache Redis, EFS, IAM roles, and security groups
• Deployment scripts — Single script (deploy-all.sh) that orchestrates the full setup
• IAM template — Optional CloudFormation template to create an IAM user with the required permissions

Prerequisites

Cluster Requirements

AWS Resources

Before deploying, you need these AWS resources in place:

• VPC with private subnets
• EKS cluster with EC2 managed node groups
• IAM user with CloudFormation and EKS full access
• AWS CLI profile configured

Tools

AWS CLI 2.x, kubectl 1.24+, and Helm 3.12+.

Deployment Steps

Step 1: Extract the Package

unzip aievals-onprem-<version>.zip
cd self-serve

Step 2: Configure Kubernetes Context

aws eks --region <region> update-kubeconfig \
  --name <cluster-name> \
  --alias <cluster-name> \
  --profile <aws-profile>

Verify:

kubectl get nodes

You should see at least 3 nodes in Ready state.

Step 3: Run the Deployment Script

This provisions all AWS infrastructure and installs the Helm charts:

./scripts/deploy-all.sh \
  --vpc-id <vpc-id> \
  --subnet-ids <subnet-id-1>,<subnet-id-2> \
  --eks-sg-id <security-group-id> \
  --cluster-name <cluster-name> \
  --region <region> \
  --aws-profile <aws-profile> \
  --namespace <namespace> \
  --aws-tags "<key1>=<value1>,<key2>=<value2>" \
  --s3-bucket <bucket-name> \
  --s3-region <region> \
  --deployment-id <deployment-id>

Step 4: Set Up SSL

1. Go to AWS Console > Certificate Manager (ACM) in your EKS region
2. Request a public certificate for your domain (e.g., evals.your-domain.com)
3. Complete DNS validation and wait for Issued status
4. Copy the Certificate ARN

Step 5: Configure SSL and Domain

Attach the certificate to the load balancer:

kubectl edit svc evals-nginx-controller-lb -n <namespace>

Add the annotation:

service.beta.kubernetes.io/aws-load-balancer-ssl-cert: <certificate-arn>

Set your domain on the ingress:

kubectl edit ingress evals-evals-platform-routes -n <namespace>

- host: evals.your-domain.com

Step 6: Verify

Your platform is now accessible at https://evals.your-domain.com.

kubectl get pods -n <namespace>

All pods should show Running status.

Upgrades

cd self-serve/helm/charts/aievals
helm dependency update
helm upgrade aievals . -n <namespace>

Uninstall

helm uninstall aievals -n <namespace>

aws cloudformation delete-stack --stack-name aievals-rds
aws cloudformation delete-stack --stack-name aievals-redis
aws cloudformation delete-stack --stack-name aievals-eks-iam

Troubleshooting
